Android Upload Image to Server using Volley Tutorial

Uploading images to our server is a very frequently used thing. In most of the apps, we need user avatar, i.e. user profile image. So here is Android Upload Image to Server Tutorial.
In this post, we will see how we can upload images from our Android app to our server. Then we will also see how do we fetch the uploaded images back to our android application. So let’s begin.

Table of Contents

1 Tools Required
2 Creating Database and RESTful API
3 Android Upload Image to Server using Volley
4 Android Upload Image to Server Source Code

Tools Required

Xampp/Wamp as for the server end I am going to use PHP and MySQL.
Android Studio, it is obvious that we need it for building our application

Creating Database and RESTful API

Database

Here, we will upload and store the image file to our server’s directory, and in the database, we will save the path to the image with some tags for that picture. So the first thing here we need is the database.

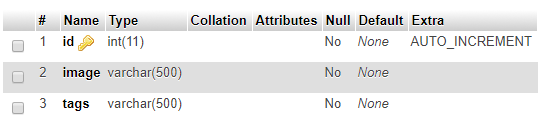

Go to localhost/phpmyadmin and create the following table names images in your database.

To create the above-given table, you can use the following SQL Query.

CREATE TABLE `images` (

`id` int(11) NOT NULL PRIMARY KEY AUTO_INCREMENT,

`image` varchar(500) NOT NULL,

`tags` varchar(500) NOT NULL

)

Once you have the database table, you can start building the API.

API

Now create a folder inside c:/xampp/htdocs (the root directory if you are using xampp), you can name this folder anything. I have created a folder named MyApi.
Inside the folder create a file named api.php and write the following php code.

100

<?php

//Constants for database connection

define('DB_HOST','localhost');

define('DB_USER','root');

define('DB_PASS','password');

define('DB_NAME','simplifiedcoding');

//We will upload files to this folder

//So one thing don't forget, also create a folder named uploads inside your project folder i.e. MyApi folder

define('UPLOAD_PATH', 'uploads/');

//connecting to database

$conn = new mysqli(DB_HOST,DB_USER,DB_PASS,DB_NAME) or die('Unable to connect');

//An array to display the response

$response = array();

//if the call is an api call

if(isset($_GET['apicall'])){

//switching the api call

switch($_GET['apicall']){

//if it is an upload call we will upload the image

case 'uploadpic':

//first confirming that we have the image and tags in the request parameter

if(isset($_FILES['pic']['name']) && isset($_POST['tags'])){

//uploading file and storing it to database as well

try{

move_uploaded_file($_FILES['pic']['tmp_name'], UPLOAD_PATH . $_FILES['pic']['name']);

$stmt = $conn->prepare("INSERT INTO images (image, tags) VALUES (?,?)");

$stmt->bind_param("ss", $_FILES['pic']['name'],$_POST['tags']);

if($stmt->execute()){

$response['error'] = false;

$response['message'] = 'File uploaded successfully';

}else{

throw new Exception("Could not upload file");

}

}catch(Exception $e){

$response['error'] = true;

$response['message'] = 'Could not upload file';

}

}else{

$response['error'] = true;

$response['message'] = "Required params not available";

}

break;

//in this call we will fetch all the images

case 'getpics':

//getting server ip for building image url

$server_ip = gethostbyname(gethostname());

//query to get images from database

$stmt = $conn->prepare("SELECT id, image, tags FROM images");

$stmt->execute();

$stmt->bind_result($id, $image, $tags);

$images = array();

//fetching all the images from database

//and pushing it to array

while($stmt->fetch()){

$temp = array();

$temp['id'] = $id;

$temp['image'] = 'http://' . $server_ip . '/MyApi/'. UPLOAD_PATH . $image;

$temp['tags'] = $tags;

array_push($images, $temp);

}

//pushing the array in response

$response['error'] = false;

$response['images'] = $images;

break;

default:

$response['error'] = true;

$response['message'] = 'Invalid api call';

}

}else{

header("HTTP/1.0 404 Not Found");

echo "<h1>404 Not Found</h1>";

echo "The page that you have requested could not be found.";

exit();

}

//displaying the response in json

header('Content-Type: application/json');

echo json_encode($response);

Now we need to test the API.

Testing the API

For testing our API I am here using POSTMAN, but you can use any tool you want.

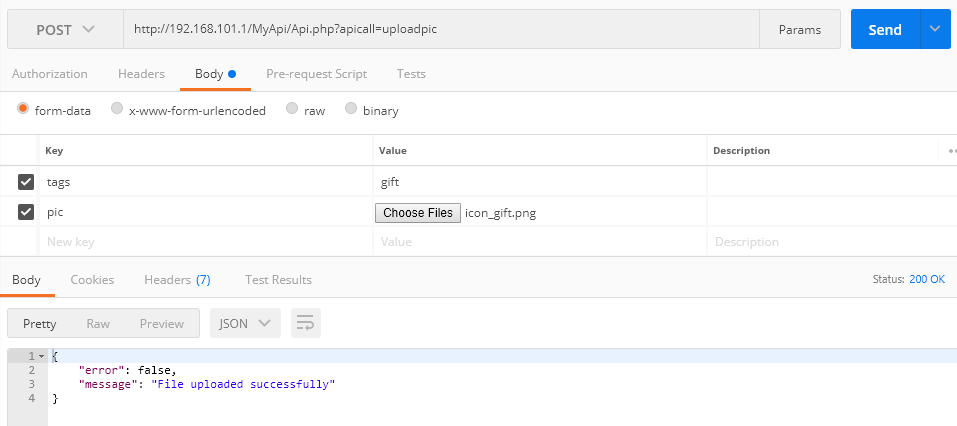

upload image to server api — Upload Image to Server API

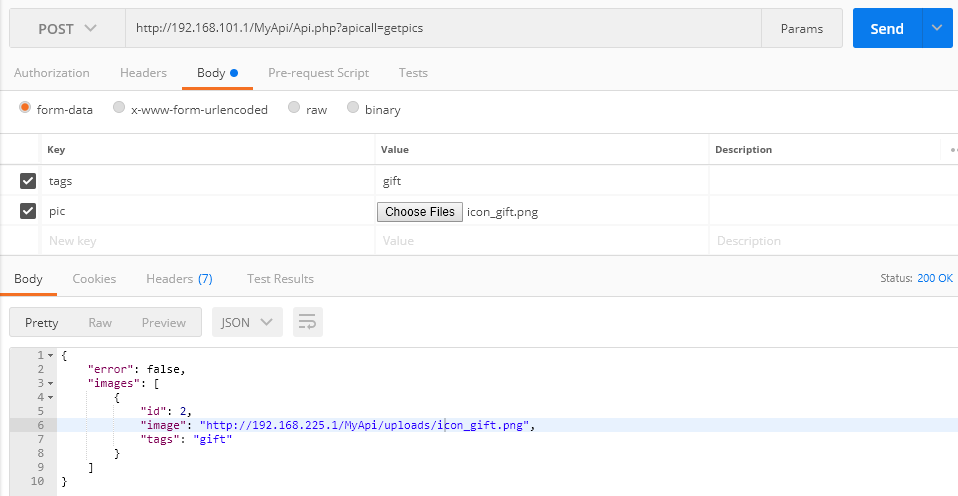

So, the upload call is perfect. Now let’s test the fetch images call.

It is perfect as well. Now we can jump on Android Side.

Android Upload Image to Server using Volley

Creating an Android Project

Now, we will create a new Android Studio project with an Empty Activity.
As we are going to use Volley first, we will add it to the project.

Adding Volley

Come inside dependencies block of app level build.gradle file and add volley here, as shown below.

dependencies {

compile fileTree(dir: 'libs', include: ['*.jar'])

androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {

exclude group: 'com.android.support', module: 'support-annotations'

})

compile 'com.android.support:appcompat-v7:26.+'

compile 'com.android.support.constraint:constraint-layout:1.0.2'

//adding volley library

compile 'com.android.volley:volley:1.1.0-rc1'

testCompile 'junit:junit:4.12'

}

Now sync your project.

Adding Permissions

We also need Internet and Read Storage permission. So inside AndroidManifest.xml add these permissions.

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="net.simplifiedlearning.androiduploadimage">

<uses-permission android:name="android.permission.INTERNET" />

<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

User Interface

Now come inside activity_main.xml and put the following xml code.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="net.simplifiedlearning.androiduploadimage.MainActivity">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_centerVertical="true"

android:orientation="vertical">

<EditText

android:id="@+id/editTextTags"

android:hint="Enter tags"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

<Button

android:id="@+id/buttonUploadImage"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center"

android:text="Upload Image" />

<ImageView

android:id="@+id/imageView"

android:layout_width="match_parent"

android:layout_height="wrap_content" />

</LinearLayout>

</RelativeLayout>

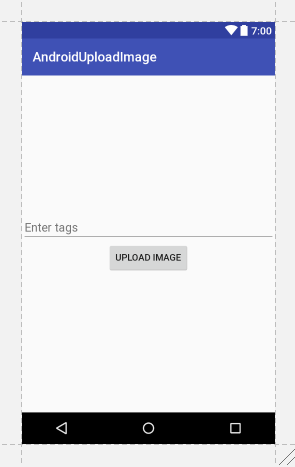

The above code will generate the following layout.

upload image to server interface — Upload Image to Server Interface

The layout is very simple, we have an EditText and a Button only.

Defining EndPoints

We will create a separate class to store our URL Endpoints. Remember using localhost will not work and you need to find the ip of your xampp. You can find the ip using ipconfig command in windows and ifconfig in linux/mac.
Create a class named EndPoints and write the following code here.

package net.simplifiedlearning.androiduploadimage;

/**

* Created by Belal on 10/24/2017.

public class EndPoints {

private static final String ROOT_URL = "http://192.168.101.1/MyApi/Api.php?apicall=";

public static final String UPLOAD_URL = ROOT_URL + "uploadpic";

public static final String GET_PICS_URL = ROOT_URL + "getpics";

}

Volley MultiPart Request

Here, we need to perform a multipart request. But the problem is volley doesn’t support multipart request directly. So that is why we need our Custom Volley Request. I found this code on GitHub and made little modifications. I am thankful to the author for his contribution.
Create a class named VolleyMultipartRequest and write the following code.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

package net.simplifiedlearning.androiduploadimage;

import com.android.volley.AuthFailureError;

import com.android.volley.NetworkResponse;

import com.android.volley.ParseError;

import com.android.volley.Request;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.HttpHeaderParser;

import java.io.ByteArrayInputStream;

import java.io.ByteArrayOutputStream;

import java.io.DataOutputStream;

import java.io.IOException;

import java.io.UnsupportedEncodingException;

import java.util.Map;

/**

* Created by Belal on 10/24/2017.

public class VolleyMultipartRequest extends Request<NetworkResponse> {

private final String twoHyphens = "--";

private final String lineEnd = "\r\n";

private final String boundary = "apiclient-" + System.currentTimeMillis();

private Response.Listener<NetworkResponse> mListener;

private Response.ErrorListener mErrorListener;

private Map<String, String> mHeaders;

public VolleyMultipartRequest(int method, String url,

Response.Listener<NetworkResponse> listener,

Response.ErrorListener errorListener) {

super(method, url, errorListener);

this.mListener = listener;

this.mErrorListener = errorListener;

}

@Override

public Map<String, String> getHeaders() throws AuthFailureError {

return (mHeaders != null) ? mHeaders : super.getHeaders();

}

@Override

public String getBodyContentType() {

return "multipart/form-data;boundary=" + boundary;

}

@Override

public byte[] getBody() throws AuthFailureError {

ByteArrayOutputStream bos = new ByteArrayOutputStream();

DataOutputStream dos = new DataOutputStream(bos);

try {

// populate text payload

Map<String, String> params = getParams();

if (params != null && params.size() > 0) {

textParse(dos, params, getParamsEncoding());

}

// populate data byte payload

Map<String, DataPart> data = getByteData();

if (data != null && data.size() > 0) {

dataParse(dos, data);

}

// close multipart form data after text and file data

dos.writeBytes(twoHyphens + boundary + twoHyphens + lineEnd);

return bos.toByteArray();

} catch (IOException e) {

e.printStackTrace();

}

return null;

}

/**

* Custom method handle data payload.

* @return Map data part label with data byte

* @throws AuthFailureError

protected Map<String, DataPart> getByteData() throws AuthFailureError {

return null;

}

@Override

protected Response<NetworkResponse> parseNetworkResponse(NetworkResponse response) {

try {

return Response.success(

response,

HttpHeaderParser.parseCacheHeaders(response));

} catch (Exception e) {

return Response.error(new ParseError(e));

}

@Override

protected void deliverResponse(NetworkResponse response) {

mListener.onResponse(response);

}

@Override

public void deliverError(VolleyError error) {

mErrorListener.onErrorResponse(error);

}

/**

* Parse string map into data output stream by key and value.

* @param dataOutputStream data output stream handle string parsing

* @param params string inputs collection

* @param encoding encode the inputs, default UTF-8

* @throws IOException

private void textParse(DataOutputStream dataOutputStream, Map<String, String> params, String encoding) throws IOException {

try {

for (Map.Entry<String, String> entry : params.entrySet()) {

buildTextPart(dataOutputStream, entry.getKey(), entry.getValue());

}

} catch (UnsupportedEncodingException uee) {

throw new RuntimeException("Encoding not supported: " + encoding, uee);

}

/**

* Parse data into data output stream.

* @param dataOutputStream data output stream handle file attachment

* @param data loop through data

* @throws IOException

private void dataParse(DataOutputStream dataOutputStream, Map<String, DataPart> data) throws IOException {

for (Map.Entry<String, DataPart> entry : data.entrySet()) {

buildDataPart(dataOutputStream, entry.getValue(), entry.getKey());

}

/**

* Write string data into header and data output stream.

* @param dataOutputStream data output stream handle string parsing

* @param parameterName name of input

* @param parameterValue value of input

* @throws IOException

private void buildTextPart(DataOutputStream dataOutputStream, String parameterName, String parameterValue) throws IOException {

dataOutputStream.writeBytes(twoHyphens + boundary + lineEnd);

dataOutputStream.writeBytes("Content-Disposition: form-data; name=\"" + parameterName + "\"" + lineEnd);

dataOutputStream.writeBytes(lineEnd);

dataOutputStream.writeBytes(parameterValue + lineEnd);

}

/**

* Write data file into header and data output stream.

* @param dataOutputStream data output stream handle data parsing

* @param dataFile data byte as DataPart from collection

* @param inputName name of data input

* @throws IOException

private void buildDataPart(DataOutputStream dataOutputStream, DataPart dataFile, String inputName) throws IOException {

dataOutputStream.writeBytes(twoHyphens + boundary + lineEnd);

dataOutputStream.writeBytes("Content-Disposition: form-data; name=\"" +

inputName + "\"; filename=\"" + dataFile.getFileName() + "\"" + lineEnd);

if (dataFile.getType() != null && !dataFile.getType().trim().isEmpty()) {

dataOutputStream.writeBytes("Content-Type: " + dataFile.getType() + lineEnd);

}

dataOutputStream.writeBytes(lineEnd);

ByteArrayInputStream fileInputStream = new ByteArrayInputStream(dataFile.getContent());

int bytesAvailable = fileInputStream.available();

int maxBufferSize = 1024 * 1024;

int bufferSize = Math.min(bytesAvailable, maxBufferSize);

byte[] buffer = new byte[bufferSize];

int bytesRead = fileInputStream.read(buffer, 0, bufferSize);

while (bytesRead > 0) {

dataOutputStream.write(buffer, 0, bufferSize);

bytesAvailable = fileInputStream.available();

bufferSize = Math.min(bytesAvailable, maxBufferSize);

bytesRead = fileInputStream.read(buffer, 0, bufferSize);

}

dataOutputStream.writeBytes(lineEnd);

}

class DataPart {

private String fileName;

private byte[] content;

private String type;

public DataPart() {

}

DataPart(String name, byte[] data) {

fileName = name;

content = data;

}

String getFileName() {

return fileName;

}

byte[] getContent() {

return content;

}

String getType() {

return type;

}

Upload Image to Server

Now the last thing is uploading the image, and we will do it inside MainActivity.java.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

package net.simplifiedlearning.androiduploadimage;

import android.Manifest;

import android.content.Intent;

import android.content.pm.PackageManager;

import android.graphics.Bitmap;

import android.net.Uri;

import android.os.Build;

import android.os.Bundle;

import android.provider.MediaStore;

import android.provider.Settings;

import android.support.v4.content.ContextCompat;

import android.support.v7.app.AppCompatActivity;

import android.view.View;

import android.widget.EditText;

import android.widget.ImageView;

import android.widget.Toast;

import com.android.volley.AuthFailureError;

import com.android.volley.NetworkResponse;

import com.android.volley.Request;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.Volley;

import org.json.JSONException;

import org.json.JSONObject;

import java.io.ByteArrayOutputStream;

import java.io.IOException;

import java.util.HashMap;

import java.util.Map;

public class MainActivity extends AppCompatActivity {

//ImageView to display image selected

ImageView imageView;

//edittext for getting the tags input

EditText editTextTags;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

//initializing views

imageView = (ImageView) findViewById(R.id.imageView);

editTextTags = (EditText) findViewById(R.id.editTextTags);

//checking the permission

//if the permission is not given we will open setting to add permission

//else app will not open

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M && ContextCompat.checkSelfPermission(this,

Manifest.permission.READ_EXTERNAL_STORAGE)

!= PackageManager.PERMISSION_GRANTED) {

Intent intent = new Intent(Settings.ACTION_APPLICATION_DETAILS_SETTINGS,

Uri.parse("package:" + getPackageName()));

finish();

startActivity(intent);

return;

}

//adding click listener to button

findViewById(R.id.buttonUploadImage).setOnClickListener(new View.OnClickListener() {

@Override

public void onClick(View view) {

//if the tags edittext is empty

//we will throw input error

if (editTextTags.getText().toString().trim().isEmpty()) {

editTextTags.setError("Enter tags first");

editTextTags.requestFocus();

return;

}

//if everything is ok we will open image chooser

Intent i = new Intent(Intent.ACTION_PICK, MediaStore.Images.Media.EXTERNAL_CONTENT_URI);

startActivityForResult(i, 100);

}

});

}

@Override

protected void onActivityResult(int requestCode, int resultCode, Intent data) {

super.onActivityResult(requestCode, resultCode, data);

if (requestCode == 100 && resultCode == RESULT_OK && data != null) {

//getting the image Uri

Uri imageUri = data.getData();

try {

//getting bitmap object from uri

Bitmap bitmap = MediaStore.Images.Media.getBitmap(this.getContentResolver(), imageUri);

//displaying selected image to imageview

imageView.setImageBitmap(bitmap);

//calling the method uploadBitmap to upload image

uploadBitmap(bitmap);

} catch (IOException e) {

e.printStackTrace();

}

* The method is taking Bitmap as an argument

* then it will return the byte[] array for the given bitmap

* and we will send this array to the server

* here we are using PNG Compression with 80% quality

* you can give quality between 0 to 100

* 0 means worse quality

* 100 means best quality

* */

public byte[] getFileDataFromDrawable(Bitmap bitmap) {

ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();

bitmap.compress(Bitmap.CompressFormat.PNG, 80, byteArrayOutputStream);

return byteArrayOutputStream.toByteArray();

}

private void uploadBitmap(final Bitmap bitmap) {

//getting the tag from the edittext

final String tags = editTextTags.getText().toString().trim();

//our custom volley request

VolleyMultipartRequest volleyMultipartRequest = new VolleyMultipartRequest(Request.Method.POST, EndPoints.UPLOAD_URL,

new Response.Listener<NetworkResponse>() {

@Override

public void onResponse(NetworkResponse response) {

try {

JSONObject obj = new JSONObject(new String(response.data));

Toast.makeText(getApplicationContext(), obj.getString("message"), Toast.LENGTH_SHORT).show();

} catch (JSONException e) {

e.printStackTrace();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

Toast.makeText(getApplicationContext(), error.getMessage(), Toast.LENGTH_SHORT).show();

}

}) {

* If you want to add more parameters with the image

* you can do it here

* here we have only one parameter with the image

* which is tags

* */

@Override

protected Map<String, String> getParams() throws AuthFailureError {

Map<String, String> params = new HashMap<>();

params.put("tags", tags);

return params;

}

* Here we are passing image by renaming it with a unique name

* */

@Override

protected Map<String, DataPart> getByteData() {

Map<String, DataPart> params = new HashMap<>();

long imagename = System.currentTimeMillis();

params.put("pic", new DataPart(imagename + ".png", getFileDataFromDrawable(bitmap)));

return params;

}

};

//adding the request to volley

Volley.newRequestQueue(this).add(volleyMultipartRequest);

}

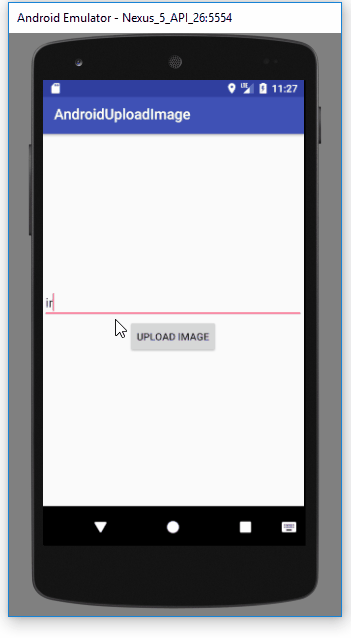

That’s it now you can try running your application.

So upload is working fine. Now the next step is fetching the uploaded images back.

Getting the Images Back to our Application

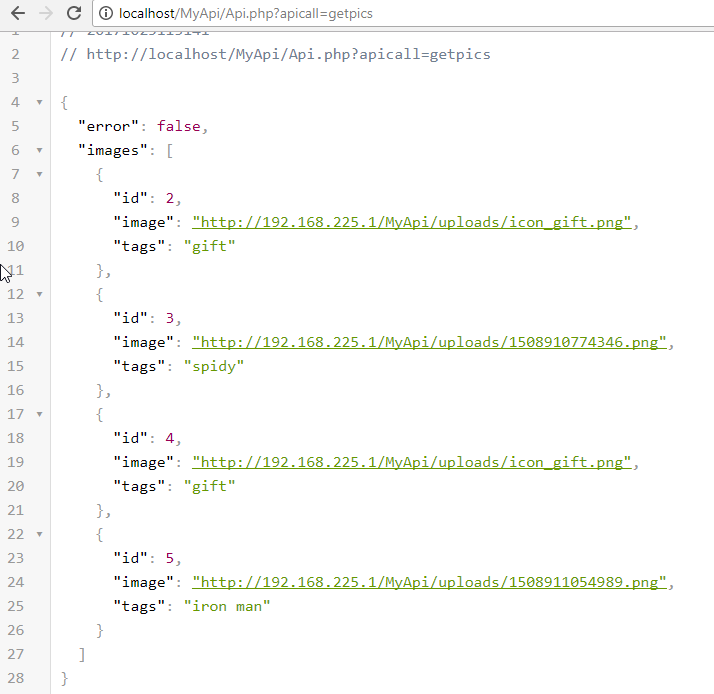

We already created the API call to get all the uploaded images.

Now we can use this URL to get the images back. I have already posted a tutorial about this. So for this part you can visit the below tutorial.

Building a RecyclerView with Images and Text

Android Upload Image to Server Source Code

If you are having any trouble following the post, then you can get my source code as well.

[sociallocker id=1372] Android Upload Image to Server Source Code [/sociallocker]

So that’s it for this Android Upload Image to Server tutorial friends. If you have any confusion, query or question, just comment it below. And if you think this post is useful please SHARE it with your friends. Thank You 🙂

Android Upload Image to Server using Volley Tutorial

Tools Required

Creating Database and RESTful API

Database

API

Testing the API

Android Upload Image to Server using Volley

Creating an Android Project

Adding Volley

Adding Permissions

User Interface

Defining EndPoints

Volley MultiPart Request

Upload Image to Server

Getting the Images Back to our Application

Android Upload Image to Server Source Code

Expand Your Knowledge: Next Tutorial Picks

Kotlin Concurrency: coroutineScope vs supervisorScope Explained

Android Interview Questions Blueprint: Your Ultimate Reference

Kotlin Ktor Android Client – Simplifying Android Networking

Android Proto DataStore Mastery with Kotlin

Android OnClickListener – Handling Button in Android Studio

Android MySQL Tutorial to Perform Basic CRUD Operation
