Retrieve Data From MySQL Database in Android using Volley

Hey guys, in this post we are going to learn how to Retrieve Data from MySQL Database in Android. And for this we will be using Volley Library. I have already posted a number of tutorials about Volley, PHP and MySQL. This post is specifically about retrieving data from MySQL Database in Android. So lets begin.

Table of Contents

1 MySQL Database
2 Retrieving Data as JSON from Table
3 Retrieve Data From MySQL Database in Android

MySQL Database

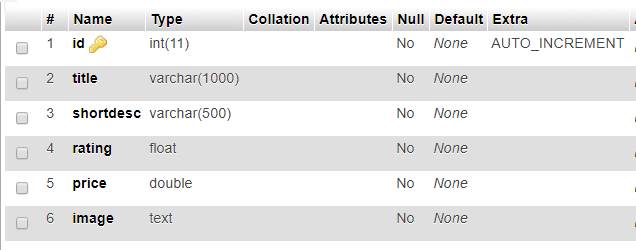

So guys this is my database table and I will fetch the data from here.

We already have some rows inserted in the above table. And our task here is to fetch those records in our Android Application. If you want you can get my database from below.

MySQL Table

Retrieving Data as JSON from Table

Here I am using (XAMPP) so for the PHP side create a folder inside htdocs (C:/xampp/htdocs). I created MyApi.
Inside this folder create a file named Api.php and write the following code.

<?php

* Created by Belal Khan

* website: www.simplifiedcoding.net

* Retrieve Data From MySQL Database in Android

//database constants

define('DB_HOST', 'localhost');

define('DB_USER', 'root');

define('DB_PASS', 'password');

define('DB_NAME', 'simplifiedcoding');

//connecting to database and getting the connection object

$conn = new mysqli(DB_HOST, DB_USER, DB_PASS, DB_NAME);

//Checking if any error occured while connecting

if (mysqli_connect_errno()) {

echo "Failed to connect to MySQL: " . mysqli_connect_error();

die();

}

//creating a query

$stmt = $conn->prepare("SELECT id, title, shortdesc, rating, price, image FROM products;");

//executing the query

$stmt->execute();

//binding results to the query

$stmt->bind_result($id, $title, $shortdesc, $rating, $price, $image);

$products = array();

//traversing through all the result

while($stmt->fetch()){

$temp = array();

$temp['id'] = $id;

$temp['title'] = $title;

$temp['shortdesc'] = $shortdesc;

$temp['rating'] = $rating;

$temp['price'] = $price;

$temp['image'] = $image;

array_push($products, $temp);

}

//displaying the result in json format

echo json_encode($products);

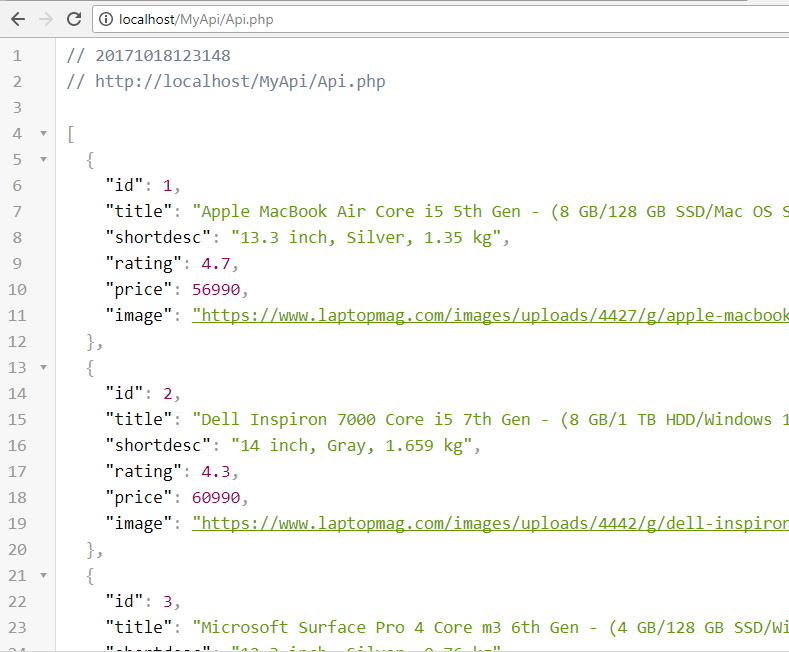

Now trying opening this PHP file in your browser. You will see the following output.

Now we will use this URL in our android side to get the above JSON data.
But remember you cannot use localhost in your URL. You need to find your IP and you can find it using ipconfig command in windows and ifconfig command in linux or mac.
In my case the URL is: http://192.168.101.1/MyApi/Api.php

Retrieve Data From MySQL Database in Android

Creating a new Android Project

So lets create a new Android Studio project where we will display the data fetched from MySQL.
Once your project is created you need to add the dependencies.

Dependencies Required

We will use
- RecyclerView for creating the Product List that we are getting as JSON.
- Glide to load image from URL.
- Volley to get the JSON data from URL.

Adding Required Dependencies

Add the following lines inside your app level build.gradle file.

dependencies {

compile fileTree(include: ['*.jar'], dir: 'libs')

androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {

exclude group: 'com.android.support', module: 'support-annotations'

})

compile 'com.android.support:appcompat-v7:26.+'

compile 'com.android.support.constraint:constraint-layout:1.0.2'

testCompile 'junit:junit:4.12'

//add these for lines

compile 'com.android.volley:volley:1.1.0-rc1'

compile 'com.android.support:recyclerview-v7:26.0.0-alpha1'

compile 'com.github.bumptech.glide:glide:4.2.0'

annotationProcessor 'com.github.bumptech.glide:compiler:4.2.0'

}

Now modify the project level gradle file as shown below.

allprojects {

repositories {

jcenter()

//add these two lines here

mavenCentral()

maven { url 'https://maven.google.com' }

}

Now sync your project and you are done.

Creating Interfaces

First we will create a RecyclerView inside our activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:app="http://schemas.android.com/apk/res-auto"

xmlns:tools="http://schemas.android.com/tools"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="net.simplifiedlearning.volleymysqlexample.MainActivity">

<android.support.v7.widget.RecyclerView

android:id="@+id/recylcerView"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:layout_editor_absoluteX="745dp"

tools:layout_editor_absoluteY="-51dp" />

</RelativeLayout>

Now we will create a new layout resource file named product_list.xml inside the layout folder. This is for our list item.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical">

<RelativeLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:padding="8dp">

<ImageView

android:id="@+id/imageView"

android:layout_width="120dp"

android:layout_height="90dp"

android:padding="4dp" />

<TextView

android:id="@+id/textViewTitle"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_marginLeft="5dp"

android:layout_toRightOf="@id/imageView"

android:text="Apple MacBook Air Core i5 5th Gen - (8 GB/128 GB SSD/Mac OS Sierra)"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Small"

android:textColor="#000000" />

<TextView

android:id="@+id/textViewShortDesc"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_below="@id/textViewTitle"

android:layout_marginLeft="5dp"

android:layout_marginTop="5dp"

android:layout_toRightOf="@id/imageView"

android:text="13.3 Inch, 256 GB"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Small" />

<TextView

android:id="@+id/textViewRating"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_below="@id/textViewShortDesc"

android:layout_marginLeft="5dp"

android:layout_marginTop="5dp"

android:layout_toRightOf="@id/imageView"

android:background="@color/colorPrimary"

android:paddingLeft="15dp"

android:paddingRight="15dp"

android:text="4.7"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Small.Inverse"

android:textStyle="bold" />

<TextView

android:id="@+id/textViewPrice"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_below="@id/textViewRating"

android:layout_marginLeft="5dp"

android:layout_marginTop="5dp"

android:layout_toRightOf="@id/imageView"

android:text="INR 56990"

android:textAppearance="@style/Base.TextAppearance.AppCompat.Large"

android:textStyle="bold" />

</RelativeLayout>

</LinearLayout>

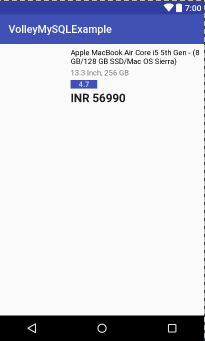

It will create the following output.

Creating Model

To keep the product we will create a class that will contain all the product attributes. So create a class named Product and write the following code.

package net.simplifiedlearning.volleymysqlexample;

/**

* Created by Belal on 10/18/2017.

public class Product {

private int id;

private String title;

private String shortdesc;

private double rating;

private double price;

private String image;

public Product(int id, String title, String shortdesc, double rating, double price, String image) {

this.id = id;

this.title = title;

this.shortdesc = shortdesc;

this.rating = rating;

this.price = price;

this.image = image;

}

public int getId() {

return id;

}

public String getTitle() {

return title;

}

public String getShortdesc() {

return shortdesc;

}

public double getRating() {

return rating;

}

public double getPrice() {

return price;

}

public String getImage() {

return image;

}

Creating Product Adapter

Now for RecyclerView we will create a ProductAdapter.java. I already posted about RecyclerView so you can learn about it in detail from this RecyclerView Tutorial.

package net.simplifiedlearning.volleymysqlexample;

import android.content.Context;

import android.support.v7.widget.RecyclerView;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ImageView;

import android.widget.TextView;

import com.bumptech.glide.Glide;

import java.util.List;

/**

* Created by Belal on 10/18/2017.

public class ProductsAdapter extends RecyclerView.Adapter<ProductsAdapter.ProductViewHolder> {

private Context mCtx;

private List<Product> productList;

public ProductsAdapter(Context mCtx, List<Product> productList) {

this.mCtx = mCtx;

this.productList = productList;

}

@Override

public ProductViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {

LayoutInflater inflater = LayoutInflater.from(mCtx);

View view = inflater.inflate(R.layout.product_list, null);

return new ProductViewHolder(view);

}

@Override

public void onBindViewHolder(ProductViewHolder holder, int position) {

Product product = productList.get(position);

//loading the image

Glide.with(mCtx)

.load(product.getImage())

.into(holder.imageView);

holder.textViewTitle.setText(product.getTitle());

holder.textViewShortDesc.setText(product.getShortdesc());

holder.textViewRating.setText(String.valueOf(product.getRating()));

holder.textViewPrice.setText(String.valueOf(product.getPrice()));

}

@Override

public int getItemCount() {

return productList.size();

}

class ProductViewHolder extends RecyclerView.ViewHolder {

TextView textViewTitle, textViewShortDesc, textViewRating, textViewPrice;

ImageView imageView;

public ProductViewHolder(View itemView) {

super(itemView);

textViewTitle = itemView.findViewById(R.id.textViewTitle);

textViewShortDesc = itemView.findViewById(R.id.textViewShortDesc);

textViewRating = itemView.findViewById(R.id.textViewRating);

textViewPrice = itemView.findViewById(R.id.textViewPrice);

imageView = itemView.findViewById(R.id.imageView);

}

Fetching JSON and Displaying it in RecyclerView

Now the last step is fetching the JSON response from URL and display it to RecyclerView.
So come inside MainActivity.java and write the following code.

100

101

102

103

104

105

106

package net.simplifiedlearning.volleymysqlexample;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.LinearLayoutManager;

import android.support.v7.widget.RecyclerView;

import com.android.volley.Request;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import com.android.volley.toolbox.Volley;

import org.json.JSONArray;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.List;

public class MainActivity extends AppCompatActivity {

//this is the JSON Data URL

//make sure you are using the correct ip else it will not work

private static final String URL_PRODUCTS = "http://192.168.101.1/MyApi/Api.php";

//a list to store all the products

List<Product> productList;

//the recyclerview

RecyclerView recyclerView;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

//getting the recyclerview from xml

recyclerView = findViewById(R.id.recylcerView);

recyclerView.setHasFixedSize(true);

recyclerView.setLayoutManager(new LinearLayoutManager(this));

//initializing the productlist

productList = new ArrayList<>();

//this method will fetch and parse json

//to display it in recyclerview

loadProducts();

}

private void loadProducts() {

* Creating a String Request

* The request type is GET defined by first parameter

* The URL is defined in the second parameter

* Then we have a Response Listener and a Error Listener

* In response listener we will get the JSON response as a String

* */

StringRequest stringRequest = new StringRequest(Request.Method.GET, URL_PRODUCTS,

new Response.Listener<String>() {

@Override

public void onResponse(String response) {

try {

//converting the string to json array object

JSONArray array = new JSONArray(response);

//traversing through all the object

for (int i = 0; i < array.length(); i++) {

//getting product object from json array

JSONObject product = array.getJSONObject(i);

//adding the product to product list

productList.add(new Product(

product.getInt("id"),

product.getString("title"),

product.getString("shortdesc"),

product.getDouble("rating"),

product.getDouble("price"),

product.getString("image")

));

}

//creating adapter object and setting it to recyclerview

ProductsAdapter adapter = new ProductsAdapter(MainActivity.this, productList);

recyclerView.setAdapter(adapter);

} catch (JSONException e) {

e.printStackTrace();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

}

});

//adding our stringrequest to queue

Volley.newRequestQueue(this).add(stringRequest);

}

Adding Internet Permission

Lastly add internet permission in your AndroidManifest.xml file.

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="net.simplifiedlearning.volleymysqlexample">

<uses-permission android:name="android.permission.INTERNET" />

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:roundIcon="@mipmap/ic_launcher_round"

android:supportsRtl="true"

android:theme="@style/AppTheme">

<intent-filter>

</intent-filter>

</activity>

</application>

</manifest>

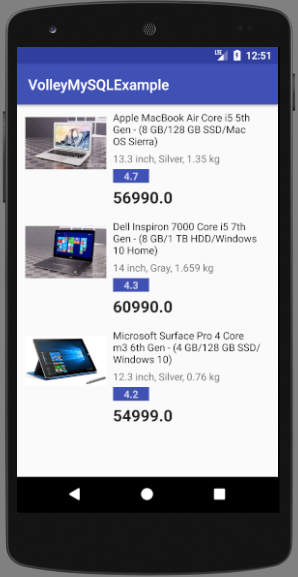

Now you can run your application.

Bingo! It is working absolutely fine.
Now if you want you can download my source code from the below given link.

Retrieve Data from MySQL Database in Android Source Code

So thats all for this tutorial friends. Hope you got the point how to retrieve data from mysql database in android. If you are having any confusions or queries you can leave your comments below. Thank You 🙂

Retrieve Data From MySQL Database in Android using Volley

MySQL Database

Retrieving Data as JSON from Table

Retrieve Data From MySQL Database in Android

Creating a new Android Project

Dependencies Required

Adding Required Dependencies

Creating Interfaces

Creating Model

Creating Product Adapter

Fetching JSON and Displaying it in RecyclerView

Adding Internet Permission

Expand Your Knowledge: Next Tutorial Picks

Kotlin Concurrency: coroutineScope vs supervisorScope Explained

Android Interview Questions Blueprint: Your Ultimate Reference

Kotlin Ktor Android Client – Simplifying Android Networking

Android Proto DataStore Mastery with Kotlin

Android Volley Example to Load Image from Internet

Android App Development Tutorial – Button and EditText
