Android Sync SQLite Database with Server using PHP and MySQL

Lets learn Android Sync SQLite Database with Server. Assume we have to send some information from the application to our webserver and internet is not available on the device at a particular time. So instead of giving error to the user that internet is not available we can store the data to SQLite and send it later automatically when the internet is available. And this is what we are going to learn in this Android Sync SQLite Database with Server Tutorial.

Table of Contents

1 Android Sync Sqlite Database with Server Demo
2 Creating Web Service and MySQL Database
- 2.1 Creating Database
- 2.2 Creating Web Service
3 Android Sync SQLite Database with Server
4 Testing the Application
5 Download Source Code

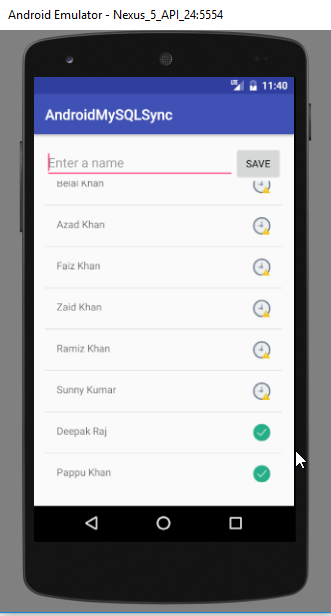

Android Sync Sqlite Database with Server Demo

You can first see what we are going to learn in this video where I am showing the application.

Now lets move ahead and start Android Sync Sqlite Database with Server.

Creating Web Service and MySQL Database

Creating Database

I have the following database. I am using XAMPP you can use anything you want.

So we have the database table. Now we will create a php script that will handle the insertion to the database.

Creating Web Service

Creating Script

Create folder in your root directory (in my case it is htdocs).
Now create a php file inside the folder, I have created saveName.php. And write the following code.

<?php

* Database Constants

* Make sure you are putting the values according to your database here

define('DB_HOST','localhost');

define('DB_USERNAME','root');

define('DB_PASSWORD','');

define('DB_NAME', 'android');

//Connecting to the database

$conn = new mysqli(DB_HOST, DB_USERNAME, DB_PASSWORD, DB_NAME);

//checking the successful connection

if($conn->connect_error) {

die("Connection failed: " . $conn->connect_error);

}

//making an array to store the response

$response = array();

//if there is a post request move ahead

if($_SERVER['REQUEST_METHOD']=='POST'){

//getting the name from request

$name = $_POST['name'];

//creating a statement to insert to database

$stmt = $conn->prepare("INSERT INTO names (name) VALUES (?)");

//binding the parameter to statement

$stmt->bind_param("s", $name);

//if data inserts successfully

if($stmt->execute()){

//making success response

$response['error'] = false;

$response['message'] = 'Name saved successfully';

}else{

//if not making failure response

$response['error'] = true;

$response['message'] = 'Please try later';

}

}else{

$response['error'] = true;

$response['message'] = "Invalid request";

}

//displaying the data in json format

echo json_encode($response);

Testing Script

Now its time to test the script we created. So in my case the URL is http://localhost/SqliteSync/saveName.php

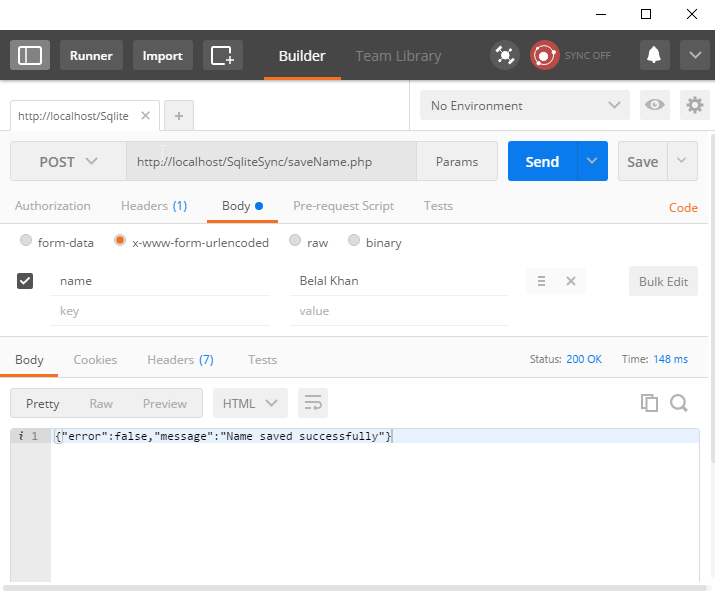

I am using POSTMAN to test the script and you can see it in below screenshot.

As you can see the script is working fine. Now lets move ahead in android project.

Android Sync SQLite Database with Server

Creating Android Project

Create a new project.
I have created AndroidMySQLSync with an Empty Activity.

Adding Permissions

We need the following permissions so first add these to AndroidManifest.xml.

<uses-permission android:name="android.permission.INTERNET" />

<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

Adding Dependencies

For network requests I am going to use Volley. So add the following line inside dependencies block of your app level build.gradle file.

dependencies {

compile fileTree(dir: 'libs', include: ['*.jar'])

androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {

exclude group: 'com.android.support', module: 'support-annotations'

})

compile 'com.android.support:appcompat-v7:25.0.1'

//add this line

compile 'com.android.volley:volley:1.0.0'

testCompile 'junit:junit:4.12'

}

Handling SQLite Operations

In this case we have to use both SQLite and MySQL. So a class named DatabaseHelper.java and write the following code.

100

101

102

103

104

105

package net.simplifiedcoding.androidmysqlsync;

import android.content.ContentValues;

import android.content.Context;

import android.database.Cursor;

import android.database.sqlite.SQLiteDatabase;

import android.database.sqlite.SQLiteOpenHelper;

/**

* Created by Belal on 1/27/2017.

public class DatabaseHelper extends SQLiteOpenHelper {

//Constants for Database name, table name, and column names

public static final String DB_NAME = "NamesDB";

public static final String TABLE_NAME = "names";

public static final String COLUMN_ID = "id";

public static final String COLUMN_NAME = "name";

public static final String COLUMN_STATUS = "status";

//database version

private static final int DB_VERSION = 1;

//Constructor

public DatabaseHelper(Context context) {

super(context, DB_NAME, null, DB_VERSION);

}

//creating the database

@Override

public void onCreate(SQLiteDatabase db) {

String sql = "CREATE TABLE " + TABLE_NAME

+ "(" + COLUMN_ID +

" INTEGER PRIMARY KEY AUTOINCREMENT, " + COLUMN_NAME +

" VARCHAR, " + COLUMN_STATUS +

" TINYINT);";

db.execSQL(sql);

}

//upgrading the database

@Override

public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

String sql = "DROP TABLE IF EXISTS Persons";

db.execSQL(sql);

onCreate(db);

}

* This method is taking two arguments

* first one is the name that is to be saved

* second one is the status

* 0 means the name is synced with the server

* 1 means the name is not synced with the server

* */

public boolean addName(String name, int status) {

SQLiteDatabase db = this.getWritableDatabase();

ContentValues contentValues = new ContentValues();

contentValues.put(COLUMN_NAME, name);

contentValues.put(COLUMN_STATUS, status);

db.insert(TABLE_NAME, null, contentValues);

db.close();

return true;

}

* This method taking two arguments

* first one is the id of the name for which

* we have to update the sync status

* and the second one is the status that will be changed

* */

public boolean updateNameStatus(int id, int status) {

SQLiteDatabase db = this.getWritableDatabase();

ContentValues contentValues = new ContentValues();

contentValues.put(COLUMN_STATUS, status);

db.update(TABLE_NAME, contentValues, COLUMN_ID + "=" + id, null);

db.close();

return true;

}

* this method will give us all the name stored in sqlite

* */

public Cursor getNames() {

SQLiteDatabase db = this.getReadableDatabase();

String sql = "SELECT * FROM " + TABLE_NAME + " ORDER BY " + COLUMN_ID + " ASC;";

Cursor c = db.rawQuery(sql, null);

return c;

}

* this method is for getting all the unsynced name

* so that we can sync it with database

* */

public Cursor getUnsyncedNames() {

SQLiteDatabase db = this.getReadableDatabase();

String sql = "SELECT * FROM " + TABLE_NAME + " WHERE " + COLUMN_STATUS + " = 0;";

Cursor c = db.rawQuery(sql, null);

return c;

}

Handling Volley RequestQueue

We are going to use Volley for http request. So for this we will create a singleton class.
Create a class named VolleySingleton and write the following code.

package net.simplifiedcoding.androidmysqlsync;

import android.content.Context;

import android.graphics.Bitmap;

import android.support.v4.util.LruCache;

import com.android.volley.Request;

import com.android.volley.RequestQueue;

import com.android.volley.toolbox.ImageLoader;

import com.android.volley.toolbox.Volley;

/**

* Created by Belal on 21/09/16.

public class VolleySingleton {

private static VolleySingleton mInstance;

private RequestQueue mRequestQueue;

private static Context mCtx;

private VolleySingleton(Context context) {

mCtx = context;

mRequestQueue = getRequestQueue();

}

public static synchronized VolleySingleton getInstance(Context context) {

if (mInstance == null) {

mInstance = new VolleySingleton(context);

}

return mInstance;

}

public RequestQueue getRequestQueue() {

if (mRequestQueue == null) {

// getApplicationContext() is key, it keeps you from leaking the

// Activity or BroadcastReceiver if someone passes one in.

mRequestQueue = Volley.newRequestQueue(mCtx.getApplicationContext());

}

return mRequestQueue;

}

public <T> void addToRequestQueue(Request<T> req) {

getRequestQueue().add(req);

}

Building Interface

MainActivity

Now inside activity_main.xml write the following code.

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:id="@+id/activity_main"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical"

android:paddingBottom="@dimen/activity_vertical_margin"

android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

tools:context="net.simplifiedcoding.androidmysqlsync.MainActivity">

<LinearLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:orientation="horizontal">

<EditText

android:id="@+id/editTextName"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_weight="3"

android:hint="Enter a name" />

<Button

android:id="@+id/buttonSave"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_weight="1"

android:text="Save" />

</LinearLayout>

<ListView

android:id="@+id/listViewNames"

android:layout_width="match_parent"

android:layout_height="wrap_content"></ListView>

</LinearLayout>

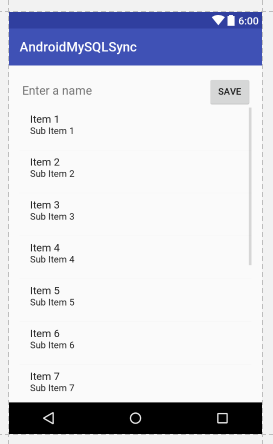

The above code will generate the following output.

Android Sync SQLite Database with Server

As you can see we have an EditText, a Button and a ListView.
Now let me tell you what we are going to do. We will save the Name from EditText and we will also display the saved name in ListView with the Sync Status. So the next part is designing a layout for our Custom ListView.

ListView

Create an xml file inside layout directory. I have created names.xml.

<?xml version="1.0" encoding="utf-8"?>

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:padding="@dimen/activity_horizontal_margin"

android:layout_width="match_parent" android:layout_height="match_parent">

<TextView

android:text="Name"

android:layout_alignParentLeft="true"

android:id="@+id/textViewName"

android:layout_width="wrap_content"

android:layout_height="wrap_content" />

<ImageView

android:background="@drawable/success"

android:layout_alignParentRight="true"

android:id="@+id/imageViewStatus"

android:layout_width="wrap_content"

android:layout_height="wrap_content" />

</RelativeLayout>

As you can see we have a TextView to display the name and an ImageView to display the status.
Download the icons from the below link, we have two images to display queued or synced.

[download id=”4043″]

You have to copy the downloaded icons inside drawable folder.

Building ListView

Model Class

Now create a class Name.java and write the following code.

package net.simplifiedcoding.androidmysqlsync;

/**

* Created by Belal on 1/27/2017.

public class Name {

private String name;

private int status;

public Name(String name, int status) {

this.name = name;

this.status = status;

}

public String getName() {

return name;

}

public int getStatus() {

return status;

}

Now we will create an Adapter for our ListView.

Adapter

Create a class NameAdapter.java and write the following code.

package net.simplifiedcoding.androidmysqlsync;

import android.content.Context;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ArrayAdapter;

import android.widget.ImageView;

import android.widget.TextView;

import java.util.List;

/**

* Created by Belal on 1/27/2017.

public class NameAdapter extends ArrayAdapter<Name> {

//storing all the names in the list

private List<Name> names;

//context object

private Context context;

//constructor

public NameAdapter(Context context, int resource, List<Name> names) {

super(context, resource, names);

this.context = context;

this.names = names;

}

@Override

public View getView(int position, View convertView, ViewGroup parent) {

//getting the layoutinflater

LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);

//getting listview itmes

View listViewItem = inflater.inflate(R.layout.names, null, true);

TextView textViewName = (TextView) listViewItem.findViewById(R.id.textViewName);

ImageView imageViewStatus = (ImageView) listViewItem.findViewById(R.id.imageViewStatus);

//getting the current name

Name name = names.get(position);

//setting the name to textview

textViewName.setText(name.getName());

//if the synced status is 0 displaying

//queued icon

//else displaying synced icon

if (name.getStatus() == 0)

imageViewStatus.setBackgroundResource(R.drawable.stopwatch);

else

imageViewStatus.setBackgroundResource(R.drawable.success);

return listViewItem;

}

Coding MainActivity

Now lets come inside MainActivity.java and write the following code.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

package net.simplifiedcoding.androidmysqlsync;

import android.Manifest;

import android.app.ProgressDialog;

import android.content.BroadcastReceiver;

import android.content.Context;

import android.content.Intent;

import android.content.IntentFilter;

import android.content.pm.PackageManager;

import android.database.Cursor;

import android.net.ConnectivityManager;

import android.support.v4.content.ContextCompat;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.View;

import android.widget.Button;

import android.widget.EditText;

import android.widget.ListView;

import android.widget.Toast;

import com.android.volley.AuthFailureError;

import com.android.volley.Request;

import com.android.volley.RequestQueue;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import com.android.volley.toolbox.Volley;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.ArrayList;

import java.util.HashMap;

import java.util.List;

import java.util.Map;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

* this is the url to our webservice

* make sure you are using the ip instead of localhost

* it will not work if you are using localhost

* */

public static final String URL_SAVE_NAME = "http://192.168.1.107/SqliteSync/saveName.php";

//database helper object

private DatabaseHelper db;

//View objects

private Button buttonSave;

private EditText editTextName;

private ListView listViewNames;

//List to store all the names

private List<Name> names;

//1 means data is synced and 0 means data is not synced

public static final int NAME_SYNCED_WITH_SERVER = 1;

public static final int NAME_NOT_SYNCED_WITH_SERVER = 0;

//a broadcast to know weather the data is synced or not

public static final String DATA_SAVED_BROADCAST = "net.simplifiedcoding.datasaved";

//Broadcast receiver to know the sync status

private BroadcastReceiver broadcastReceiver;

//adapterobject for list view

private NameAdapter nameAdapter;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

//initializing views and objects

db = new DatabaseHelper(this);

names = new ArrayList<>();

buttonSave = (Button) findViewById(R.id.buttonSave);

editTextName = (EditText) findViewById(R.id.editTextName);

listViewNames = (ListView) findViewById(R.id.listViewNames);

//adding click listener to button

buttonSave.setOnClickListener(this);

//calling the method to load all the stored names

loadNames();

//the broadcast receiver to update sync status

broadcastReceiver = new BroadcastReceiver() {

@Override

public void onReceive(Context context, Intent intent) {

//loading the names again

loadNames();

}

};

//registering the broadcast receiver to update sync status

registerReceiver(broadcastReceiver, new IntentFilter(DATA_SAVED_BROADCAST));

}

* this method will

* load the names from the database

* with updated sync status

* */

private void loadNames() {

names.clear();

Cursor cursor = db.getNames();

if (cursor.moveToFirst()) {

do {

Name name = new Name(

cursor.getString(cursor.getColumnIndex(DatabaseHelper.COLUMN_NAME)),

cursor.getInt(cursor.getColumnIndex(DatabaseHelper.COLUMN_STATUS))

);

names.add(name);

} while (cursor.moveToNext());

}

nameAdapter = new NameAdapter(this, R.layout.names, names);

listViewNames.setAdapter(nameAdapter);

}

* this method will simply refresh the list

* */

private void refreshList() {

nameAdapter.notifyDataSetChanged();

}

* this method is saving the name to ther server

* */

private void saveNameToServer() {

final ProgressDialog progressDialog = new ProgressDialog(this);

progressDialog.setMessage("Saving Name...");

progressDialog.show();

final String name = editTextName.getText().toString().trim();

StringRequest stringRequest = new StringRequest(Request.Method.POST, URL_SAVE_NAME,

new Response.Listener<String>() {

@Override

public void onResponse(String response) {

progressDialog.dismiss();

try {

JSONObject obj = new JSONObject(response);

if (!obj.getBoolean("error")) {

//if there is a success

//storing the name to sqlite with status synced

saveNameToLocalStorage(name, NAME_SYNCED_WITH_SERVER);

} else {

//if there is some error

//saving the name to sqlite with status unsynced

saveNameToLocalStorage(name, NAME_NOT_SYNCED_WITH_SERVER);

}

} catch (JSONException e) {

e.printStackTrace();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

progressDialog.dismiss();

//on error storing the name to sqlite with status unsynced

saveNameToLocalStorage(name, NAME_NOT_SYNCED_WITH_SERVER);

}

}) {

@Override

protected Map<String, String> getParams() throws AuthFailureError {

Map<String, String> params = new HashMap<>();

params.put("name", name);

return params;

}

};

VolleySingleton.getInstance(this).addToRequestQueue(stringRequest);

}

//saving the name to local storage

private void saveNameToLocalStorage(String name, int status) {

editTextName.setText("");

db.addName(name, status);

Name n = new Name(name, status);

names.add(n);

refreshList();

}

@Override

public void onClick(View view) {

saveNameToServer();

}

Now if you will run the application it will save the name to MySQL and SQLite with the sync or unsynced status.
But to send the unsynced names to the server automatically we have to detect the Network Status of the phone. For this we need one more broadcast receiver.

Detecting Network State

Creating Broadcast Receiver

Create a class named NetworkStateChecker.java and write the following code.

100

101

102

103

104

105

106

107

package net.simplifiedcoding.androidmysqlsync;

import android.content.BroadcastReceiver;

import android.content.Context;

import android.content.Intent;

import android.database.Cursor;

import android.net.ConnectivityManager;

import android.net.NetworkInfo;

import com.android.volley.AuthFailureError;

import com.android.volley.Request;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import org.json.JSONException;

import org.json.JSONObject;

import java.util.HashMap;

import java.util.Map;

/**

* Created by Belal on 1/27/2017.

public class NetworkStateChecker extends BroadcastReceiver {

//context and database helper object

private Context context;

private DatabaseHelper db;

@Override

public void onReceive(Context context, Intent intent) {

this.context = context;

db = new DatabaseHelper(context);

ConnectivityManager cm = (ConnectivityManager) context.getSystemService(Context.CONNECTIVITY_SERVICE);

NetworkInfo activeNetwork = cm.getActiveNetworkInfo();

//if there is a network

if (activeNetwork != null) {

//if connected to wifi or mobile data plan

if (activeNetwork.getType() == ConnectivityManager.TYPE_WIFI || activeNetwork.getType() == ConnectivityManager.TYPE_MOBILE) {

//getting all the unsynced names

Cursor cursor = db.getUnsyncedNames();

if (cursor.moveToFirst()) {

do {

//calling the method to save the unsynced name to MySQL

saveName(

cursor.getInt(cursor.getColumnIndex(DatabaseHelper.COLUMN_ID)),

cursor.getString(cursor.getColumnIndex(DatabaseHelper.COLUMN_NAME))

);

} while (cursor.moveToNext());

}

* method taking two arguments

* name that is to be saved and id of the name from SQLite

* if the name is successfully sent

* we will update the status as synced in SQLite

* */

private void saveName(final int id, final String name) {

StringRequest stringRequest = new StringRequest(Request.Method.POST, MainActivity.URL_SAVE_NAME,

new Response.Listener<String>() {

@Override

public void onResponse(String response) {

try {

JSONObject obj = new JSONObject(response);

if (!obj.getBoolean("error")) {

//updating the status in sqlite

db.updateNameStatus(id, MainActivity.NAME_SYNCED_WITH_SERVER);

//sending the broadcast to refresh the list

context.sendBroadcast(new Intent(MainActivity.DATA_SAVED_BROADCAST));

}

} catch (JSONException e) {

e.printStackTrace();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

}

}) {

@Override

protected Map<String, String> getParams() throws AuthFailureError {

Map<String, String> params = new HashMap<>();

params.put("name", name);

return params;

}

};

VolleySingleton.getInstance(context).addToRequestQueue(stringRequest);

}

Adding Receiver in Manifest

Add the following code in your AndroidManifest.xml file inside application tag.

<intent-filter>

</intent-filter>

</receiver>

Registering Receiver

You also need to register the receiver. So add the following line inside onCreate() method of your MainActivity.java file.

registerReceiver(new NetworkStateChecker(), new IntentFilter(ConnectivityManager.CONNECTIVITY_ACTION));

Now you can run your application.

Testing the Application

Run your application. And try saving the name when internet is available also turn off the internet and again try saving your name.
Android Sync SQLite Database with Server
When the internet will be available again the data will be automatically sent to MySQL.

Download Source Code

You can get the source code from the following GitHub repository.

[sociallocker id=1372] Android Sync SQlite Database with Server Source Code [/sociallocker]

So thats it for this android sync sqlite database with server tutorial friends. Feel free to leave your comments if you are having any troubles making the project. Also follow the steps carefully as the post is very long. And if you found this helpful please favor us by sharing this post in your social network. Thank You 🙂

Android Sync SQLite Database with Server using PHP and MySQL

Android Sync Sqlite Database with Server Demo

Creating Web Service and MySQL Database

Creating Database

Creating Web Service

Creating Script

Testing Script

Android Sync SQLite Database with Server

Creating Android Project

Adding Permissions

Adding Dependencies

Handling SQLite Operations

Handling Volley RequestQueue

Building Interface

MainActivity

ListView

Building ListView

Model Class

Adapter

Coding MainActivity

Detecting Network State

Creating Broadcast Receiver

Adding Receiver in Manifest

Registering Receiver

Testing the Application

Download Source Code

Expand Your Knowledge: Next Tutorial Picks

Kotlin Concurrency: coroutineScope vs supervisorScope Explained

Android Interview Questions Blueprint: Your Ultimate Reference

Kotlin Ktor Android Client – Simplifying Android Networking

Android Proto DataStore Mastery with Kotlin

Android Service Example for Background Processes

How to Access SQLite Database in Android using ADB Shell?
