Android Login Example Using PHP, MySQL and Volley

Hello friends we have already covered a couple of tutorials for android login example using php mysql.

But in the above mentioned tutorials, we were not maintaining the login session. Like once user has logged in to our app, user do not need to login again.

So in this android login example we will see how we can do Android User Session Management. And we will give a logout button from where user can logout from our app.

Android Login Example – Video

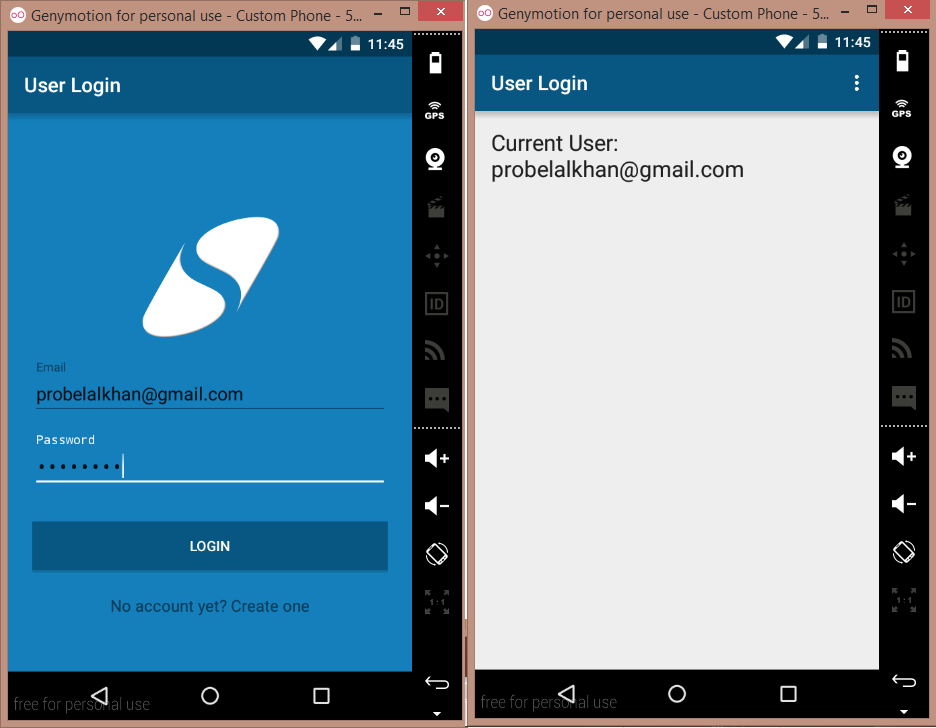

You can check the following video to know exactly what we will be creating in this android log in tutorial.

Now if you want to create this android login example, go ahead in this tutorial.

Creating Database and PHP Scripts

For this tutorial I am using wamp server.

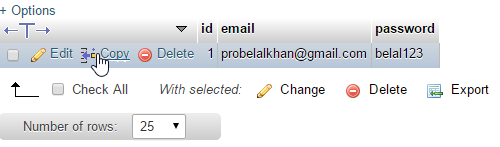

This is my MySQL database.

As you can see I have a very small table with only three columns (id, email and password). You have to create the same.
Now we will create two php script. The first one to connect to the database (dbConnect.php).

<?php

define('HOST','localhost');

define('USER','root');

define('PASS','');

define('DB','androiddb');

$con = mysqli_connect(HOST,USER,PASS,DB) or die('Unable to Connect');

Quick Tip: Are you are thinking that closing php tag ‘ ?> ‘ is missing? Actually we do not need the closing tag for the files having only php code on it. You can still put the ?> closing tag but it will not make any difference.

The next script to handle our login request. Create a new php file login.php.

<?php

if($_SERVER['REQUEST_METHOD']=='POST'){

//Getting values

$username = $_POST['email'];

$password = $_POST['password'];

//Creating sql query

$sql = "SELECT * FROM users WHERE email='$username' AND password='$password'";

//importing dbConnect.php script

require_once('dbConnect.php');

//executing query

$result = mysqli_query($con,$sql);

//fetching result

$check = mysqli_fetch_array($result);

//if we got some result

if(isset($check)){

//displaying success

echo "success";

}else{

//displaying failure

echo "failure";

}

mysqli_close($con);

}

Android Login Example

Create a new Android Project.
Add android volley library to your project dependencies.

dependencies {

compile fileTree(dir: 'libs', include: ['*.jar'])

testCompile 'junit:junit:4.12'

compile 'com.android.support:appcompat-v7:23.1.0'

compile 'com.android.support:design:23.0.0'

compile 'com.mcxiaoke.volley:library-aar:1.0.0'

}

Now create a new class named Config.java to store some important constants.

package net.simplifiedcoding.androidloginlogout;

/**

* Created by Belal on 11/14/2015.

public class Config {

//URL to our login.php file

public static final String LOGIN_URL = "http://192.168.94.1/Android/LoginLogout/login.php";

//Keys for email and password as defined in our $_POST['key'] in login.php

public static final String KEY_EMAIL = "email";

public static final String KEY_PASSWORD = "password";

//If server response is equal to this that means login is successful

public static final String LOGIN_SUCCESS = "success";

//Keys for Sharedpreferences

//This would be the name of our shared preferences

public static final String SHARED_PREF_NAME = "myloginapp";

//This would be used to store the email of current logged in user

public static final String EMAIL_SHARED_PREF = "email";

//We will use this to store the boolean in sharedpreference to track user is loggedin or not

public static final String LOGGEDIN_SHARED_PREF = "loggedin";

}

Desiging Android Login Activity

First we will define colors. Inside values-> colors.xml write the following code.

<?xml version="1.0" encoding="utf-8"?>

<color name="colorAccent">#FFFFFF</color>

</resources>

In the layout file of your login activity write the following code.

<?xml version="1.0" encoding="utf-8"?>

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"

android:background="@color/colorBackground"

android:layout_width="fill_parent"

android:layout_height="fill_parent"

android:fitsSystemWindows="true">

<LinearLayout

android:layout_gravity="center_vertical"

android:orientation="vertical"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:paddingTop="56dp"

android:paddingLeft="24dp"

android:paddingRight="24dp">

<ImageView

android:background="@drawable/logo"

android:layout_gravity="center_horizontal"

android:layout_width="150dp"

android:layout_height="150dp" />

<android.support.design.widget.TextInputLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_marginTop="8dp"

android:layout_marginBottom="8dp">

<EditText android:id="@+id/editTextEmail"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:inputType="textEmailAddress"

android:hint="Email" />

</android.support.design.widget.TextInputLayout>

<android.support.design.widget.TextInputLayout

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_marginTop="8dp"

android:layout_marginBottom="8dp">

<EditText android:id="@+id/editTextPassword"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:inputType="textPassword"

android:hint="Password"/>

</android.support.design.widget.TextInputLayout>

<android.support.v7.widget.AppCompatButton

android:id="@+id/buttonLogin"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:background="@color/colorPrimary"

android:textColor="@color/colorAccent"

android:layout_marginTop="24dp"

android:layout_marginBottom="24dp"

android:padding="12dp"

android:text="Login"/>

<TextView android:id="@+id/linkSignup"

android:layout_width="fill_parent"

android:layout_height="wrap_content"

android:layout_marginBottom="24dp"

android:text="No account yet? Create one"

android:gravity="center"

android:textSize="16dip"/>

</LinearLayout>

</ScrollView>

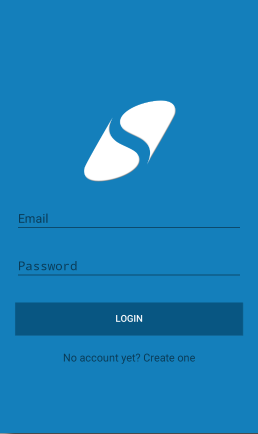

The above code will produce the following layout. We are not creating an Android Registration Form here. User will directly see the login page.

Now come to the java code (In my case it is LoginActivity.java).

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

package net.simplifiedcoding.androidloginlogout;

import android.content.Context;

import android.content.Intent;

import android.content.SharedPreferences;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.support.v7.widget.AppCompatButton;

import android.view.Menu;

import android.view.View;

import android.widget.EditText;

import android.widget.Toast;

import com.android.volley.AuthFailureError;

import com.android.volley.Request;

import com.android.volley.RequestQueue;

import com.android.volley.Response;

import com.android.volley.VolleyError;

import com.android.volley.toolbox.StringRequest;

import com.android.volley.toolbox.Volley;

import java.util.HashMap;

import java.util.Map;

public class LoginActivity extends AppCompatActivity implements View.OnClickListener {

//Defining views

private EditText editTextEmail;

private EditText editTextPassword;

private AppCompatButton buttonLogin;

//boolean variable to check user is logged in or not

//initially it is false

private boolean loggedIn = false;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_login);

//Initializing views

editTextEmail = (EditText) findViewById(R.id.editTextEmail);

editTextPassword = (EditText) findViewById(R.id.editTextPassword);

buttonLogin = (AppCompatButton) findViewById(R.id.buttonLogin);

//Adding click listener

buttonLogin.setOnClickListener(this);

}

@Override

protected void onResume() {

super.onResume();

//In onresume fetching value from sharedpreference

SharedPreferences sharedPreferences = getSharedPreferences(Config.SHARED_PREF_NAME,Context.MODE_PRIVATE);

//Fetching the boolean value form sharedpreferences

loggedIn = sharedPreferences.getBoolean(Config.LOGGEDIN_SHARED_PREF, false);

//If we will get true

if(loggedIn){

//We will start the Profile Activity

Intent intent = new Intent(LoginActivity.this, ProfileActivity.class);

startActivity(intent);

}

private void login(){

//Getting values from edit texts

final String email = editTextEmail.getText().toString().trim();

final String password = editTextPassword.getText().toString().trim();

//Creating a string request

StringRequest stringRequest = new StringRequest(Request.Method.POST, Config.LOGIN_URL,

new Response.Listener<String>() {

@Override

public void onResponse(String response) {

//If we are getting success from server

if(response.equalsIgnoreCase(Config.LOGIN_SUCCESS)){

//Creating a shared preference

SharedPreferences sharedPreferences = LoginActivity.this.getSharedPreferences(Config.SHARED_PREF_NAME, Context.MODE_PRIVATE);

//Creating editor to store values to shared preferences

SharedPreferences.Editor editor = sharedPreferences.edit();

//Adding values to editor

editor.putBoolean(Config.LOGGEDIN_SHARED_PREF, true);

editor.putString(Config.EMAIL_SHARED_PREF, email);

//Saving values to editor

editor.commit();

//Starting profile activity

Intent intent = new Intent(LoginActivity.this, ProfileActivity.class);

startActivity(intent);

}else{

//If the server response is not success

//Displaying an error message on toast

Toast.makeText(LoginActivity.this, "Invalid username or password", Toast.LENGTH_LONG).show();

}

new Response.ErrorListener() {

@Override

public void onErrorResponse(VolleyError error) {

//You can handle error here if you want

}

}){

@Override

protected Map<String, String> getParams() throws AuthFailureError {

Map<String,String> params = new HashMap<>();

//Adding parameters to request

params.put(Config.KEY_EMAIL, email);

params.put(Config.KEY_PASSWORD, password);

//returning parameter

return params;

}

};

//Adding the string request to the queue

RequestQueue requestQueue = Volley.newRequestQueue(this);

requestQueue.add(stringRequest);

}

@Override

public void onClick(View v) {

//Calling the login function

}

Now we need to code the next activity (Create a new activity for profile ProfileActivity.java).
For this activity we need to create a menu for our logout button. So inside menu -> menu.xml write the following.

<?xml version="1.0" encoding="utf-8"?>

</menu>

We need to create only a single TextView in our layout file for this activity (activity_profile.xml).

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent"

android:orientation="vertical"

android:layout_height="match_parent" android:paddingLeft="@dimen/activity_horizontal_margin"

android:paddingRight="@dimen/activity_horizontal_margin"

android:paddingTop="@dimen/activity_vertical_margin"

android:paddingBottom="@dimen/activity_vertical_margin"

tools:context="net.simplifiedcoding.androidloginlogout.ProfileActivity">

<TextView

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:textAppearance="?android:attr/textAppearanceLarge"

android:text="Large Text"

android:id="@+id/textView" />

</LinearLayout>

Write the following code in ProfileActivity.java

package net.simplifiedcoding.androidloginlogout;

import android.content.Context;

import android.content.DialogInterface;

import android.content.Intent;

import android.content.SharedPreferences;

import android.support.v7.app.AlertDialog;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.view.Menu;

import android.view.MenuItem;

import android.widget.TextView;

public class ProfileActivity extends AppCompatActivity {

//Textview to show currently logged in user

private TextView textView;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_profile);

//Initializing textview

textView = (TextView) findViewById(R.id.textView);

//Fetching email from shared preferences

SharedPreferences sharedPreferences = getSharedPreferences(Config.SHARED_PREF_NAME, Context.MODE_PRIVATE);

String email = sharedPreferences.getString(Config.EMAIL_SHARED_PREF,"Not Available");

//Showing the current logged in email to textview

textView.setText("Current User: " + email);

}

//Logout function

private void logout(){

//Creating an alert dialog to confirm logout

AlertDialog.Builder alertDialogBuilder = new AlertDialog.Builder(this);

alertDialogBuilder.setMessage("Are you sure you want to logout?");

alertDialogBuilder.setPositiveButton("Yes",

new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface arg0, int arg1) {

//Getting out sharedpreferences

SharedPreferences preferences = getSharedPreferences(Config.SHARED_PREF_NAME,Context.MODE_PRIVATE);

//Getting editor

SharedPreferences.Editor editor = preferences.edit();

//Puting the value false for loggedin

editor.putBoolean(Config.LOGGEDIN_SHARED_PREF, false);

//Putting blank value to email

editor.putString(Config.EMAIL_SHARED_PREF, "");

//Saving the sharedpreferences

editor.commit();

//Starting login activity

Intent intent = new Intent(ProfileActivity.this, LoginActivity.class);

startActivity(intent);

}

});

alertDialogBuilder.setNegativeButton("No",

new DialogInterface.OnClickListener() {

@Override

public void onClick(DialogInterface arg0, int arg1) {

}

});

//Showing the alert dialog

AlertDialog alertDialog = alertDialogBuilder.create();

alertDialog.show();

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

//Adding our menu to toolbar

getMenuInflater().inflate(R.menu.menu, menu);

return true;

}

@Override

public boolean onOptionsItemSelected(MenuItem item) {

int id = item.getItemId();

if (id == R.id.menuLogout) {

//calling logout method when the logout button is clicked

logout();

}

return super.onOptionsItemSelected(item);

}

Add Internet Permission to Your AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>

<manifest xmlns:android="http://schemas.android.com/apk/res/android"

package="net.simplifiedcoding.androidloginlogout" >

<uses-permission android:name="android.permission.INTERNET" />

<application

android:allowBackup="true"

android:icon="@mipmap/ic_launcher"

android:label="@string/app_name"

android:supportsRtl="true"

android:theme="@style/AppTheme" >

<intent-filter>

</intent-filter>

</activity>

</activity>

</application>

</manifest>

Thats it, run your application now.

Bingo! its working fine.
You can also download my source code from github. Visit the link given below.

[sociallocker id=1372] Download this Android Project from GitHub [/sociallocker]

[wp_ad_camp_1]

Common Error with this Android Login Example

If you are using wamp or xampp server and getting blank toast message. Then this is often cause when your emulator cannot access your host. So you have to write the correct URL in Config.java file.

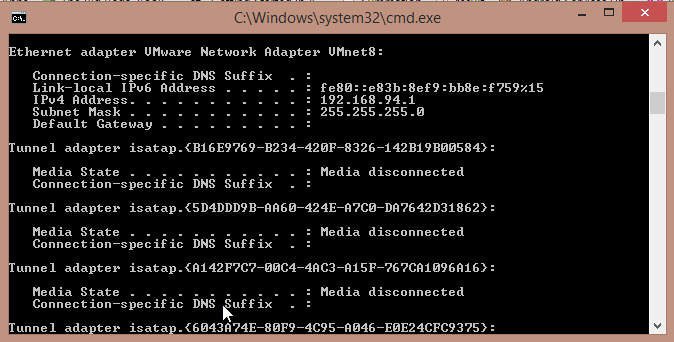

To know what is your URL open your command prompt and type ipconfig.

Here you will see your IP Address. 192.168.94.1 -> this is my root and I stored my php scripts inside Android/LoginLogout/
So my URL is http://192.168.94.1/Android/LoginLogout/login.php

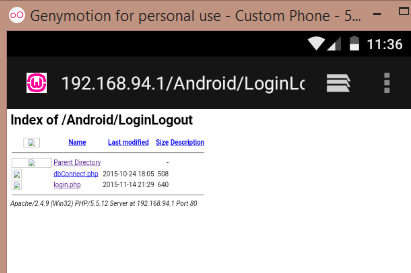

To confirm it is correct open your emulator and write http://192.168.94.1/Android/LoginLogout (You have to write your address) in browser and check the browser can access it or not.

If your browser can access your URL then it is fine.
If you got more than one IP with ipconfig command. Try accessing all the IPs one by one in your browser to get the correct one.

Some More Android Application Development Tutorial To Check

So thats all for this Android Login Example friends. Feel free to leave your comments if you are having any doubts or queries. Thank You 🙂

Android Login Example Using PHP, MySQL and Volley

Android Retrofit Tutorial to Insert into MySQL Database

Android SMS Verification App – Phone Verification with OTP

Android Login Example Using PHP, MySQL and Volley

Android Login Example – Video

Creating Database and PHP Scripts

Android Login Example

Desiging Android Login Activity

Common Error with this Android Login Example

Expand Your Knowledge: Next Tutorial Picks

Kotlin Concurrency: coroutineScope vs supervisorScope Explained

Android Interview Questions Blueprint: Your Ultimate Reference

Kotlin Ktor Android Client – Simplifying Android Networking

Android Proto DataStore Mastery with Kotlin

Android Retrofit Tutorial to Insert into MySQL Database

Android SMS Verification App – Phone Verification with OTP
